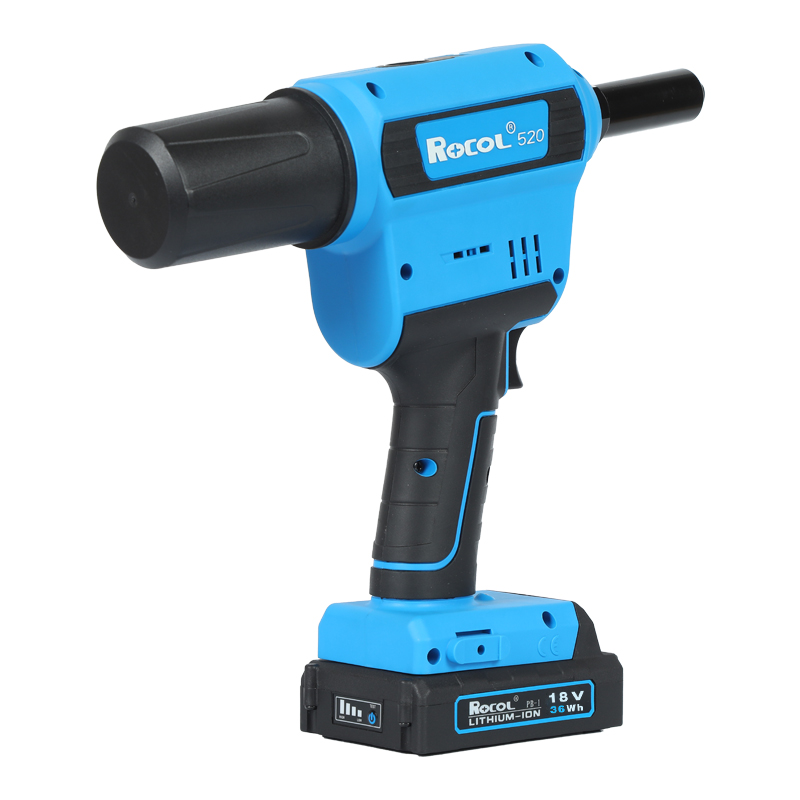

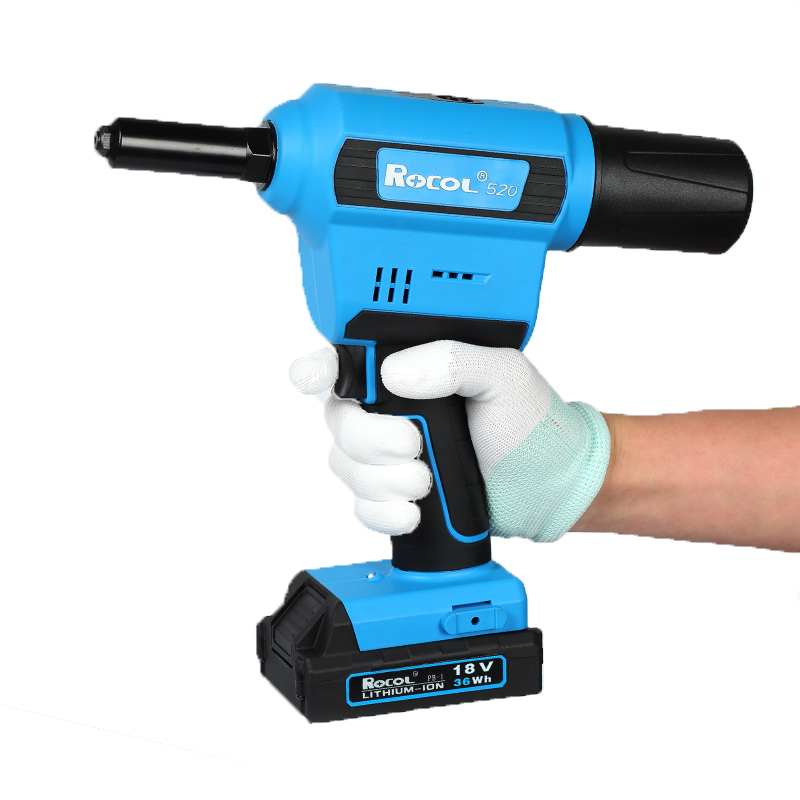

ROCOL Lithium Battery Rivet Tool/RL-520

Compact 18V brushless riveter for general assembly.

ModelRL-520
Working rangeΦ2.4 – Φ6.4
Pull force20,000 N
Weight1.90 kg (battery included)
Battery18V/2.0Ah-4.0Ah
Riveting trip: 26 mm

—— Made in China ——

Inquire Now
  • • Brushless motor system, durable and stable working performance
    • Transmission mechanism adopts screw mechanism for large pulling force
    • CNC-machined alloy-steel gear, integrated integrated design
    • Non-contact induction start switch extends switch life
    • CE-standard charger and battery, fireproof + explosion-proof, temperature-control protected, 1-hour fast charge

What’s in the box:

  • RL-860 body ×1
  • Blow-molded carry case ×1
  • Lithium batteries ×2
  • Wrench ×1
  • Quick charging dock ×1
  • M4, M5, M6, M8 tips (one each)
  • Certificate of conformity ×1
  • Instruction manual ×1

Packaging Specifications:

  • Weight per box: 3 kg
  • Dimensions per box: 330 × 265 × 85 mm
  • Quantity per carton: 10 boxes
  • Carton dimensions: 545 × 485 × 350 mm
  • Carton volume: 0.093 m³
  • Carton weight: 32 kg
